POSEIDON

FLIGHT CONVEYOR TYPE (PDF-500)

FLIGHT CONVEYOR TYPE is a dishwasher which enables auto washing, rinsing and drying by sticking various dishes to the conveyor for consumer’s convenience.
Any dishes can be easily mounted and transported by finger mounted in limitless conveyor, the most widely used in big business places.

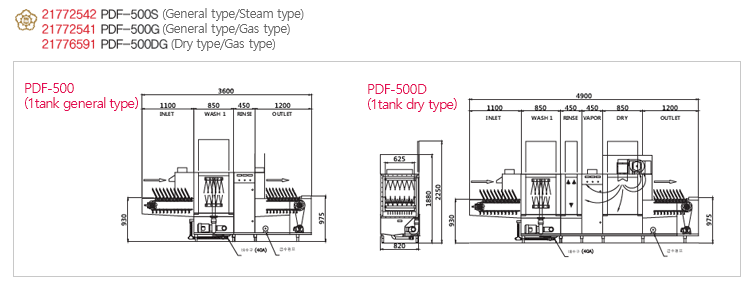

PDF-500, PDF-500D (1Tank Type)

· Maximized space utilization
· Stainless spray nozzle type
· Auto water feeding and auto heating
· Convenient one touch use type
· Auto conveyor type
· Safety accident prevention by
transport operation safety device
· Primary, secondary filter
· High temperature sterilizing effect
during rinsing
· Optional gas type/steam type
/electric type
· Optional Energy recovery system

Model name	Common specification											Steam type				Gas type
Model name	Size (LxWxH)	Cleansing capacity (food tray/h)	Operating motor (kw)	Speed (M/min)	Washing pump (kw)	Washing pump capacity (L/min)	Tank capacity (L)	Rinsing capacity (L/Hr)	Water supply piping (A)	Drain piping (A)	Use voltage 3phase(V)	Contact piping (A)	Steam consum- tion (Kg/Hr)	Dry motor (kw)	Consum- ption voltage (kw)	Tank heater (kw)	Rinsing pump (kw)	Dry heater (kw)	Dry Motor (kw)	Contact piping (A)	Consum- ption power (kw)
PDF-500	3600 x 820 x 1570	560	0.2	0.7	2.2	1100	115	500	20	40	220/380	32	90	-	2.65	6	0.2	-	-	20	8.6
PDF-500D	4900 x 820 x 1880	560	0.2	0.7	2.2	1100	115	500	20	40	220/380	32	120	0.4	0.05	6	0.2	18	0.4	20	27
